AYTUT VICES
Steel drill press vice
Workholding on the drill press.
AYTUT steel drill press vices are designed to hold workpieces in drill press applications. Models are available in 100, 125, 150, 175 and 200 mm sizes.
- Body
- Steel
- Available models
- 100 · 125 · 150 · 175 · 200 mm
ABOUT THE PRODUCT
Applications
Used to position and securely hold a workpiece on a drill press before drilling.
Positioning the workpiece
A steel drill press vice positions and holds the workpiece before drilling. Consider the shape of the part, the hole location and the drill bit's travel together. In addition to holding the part, the vice must be properly secured to the drill press table.
Table and mounting compatibility
Before ordering, check the table dimensions, slot or hole positions and the required fasteners. The vice position must allow access to the drilling point while remaining securely mounted throughout the operation. Allow sufficient drill bit clearance, including the space beneath the workpiece.
Which size should you choose?
This series includes 100, 125, 150, 175 and 200 mm models. Consider the width and height of the workpiece and the portion held between the jaws. Round or irregular parts may require a special clamping arrangement; fitting between the jaws alone does not establish suitability for the application.
Installation and daily maintenance
Secure the vice to a sturdy work surface using suitable fasteners. Before use, check the mounting, jaw cleanliness and grip on the workpiece. Remove chips and debris with a suitable brush, and follow the product's lubrication instructions when maintaining moving surfaces.
Do not extend the handle with a pipe to increase force. Use the product only for its intended purpose. If you notice damage to the body, jaws or screw, have it checked before further use.
Choosing your vice
Check the drill press table, mounting slots and workpiece dimensions. Confirm mounting compatibility before ordering.
The millimetre value in the model name does not, by itself, specify the maximum jaw opening. Please confirm the jaw opening, weight and mounting dimensions of your chosen model.
SIZE OPTIONS
Models
| Model | Body | Model size |
|---|---|---|
| AYTUT 100 mm | Steel | 100 mm |
| AYTUT 125 mm | Steel | 125 mm |
| AYTUT 150 mm | Steel | 150 mm |
| AYTUT 175 mm | Steel | 175 mm |
| AYTUT 200 mm | Steel | 200 mm |
YOUR QUESTIONS
Frequently asked questions
Is the model size the same as the jaw opening?
The millimetre value in the model name alone does not indicate the maximum jaw opening. To check suitability for your workpiece, assess the jaw width, opening, depth and mounting dimensions of the specific model.
Which model is shown in the photos?

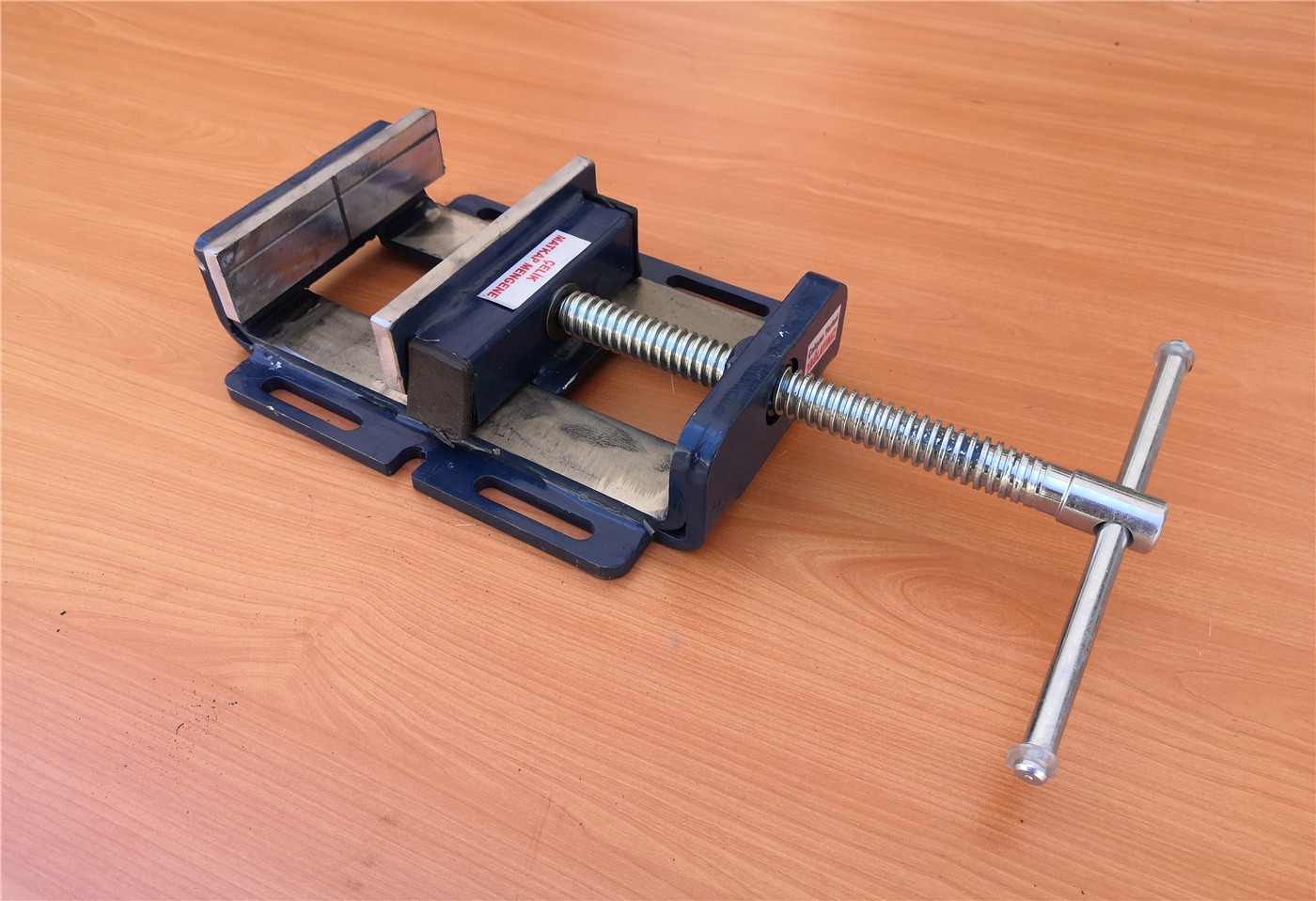

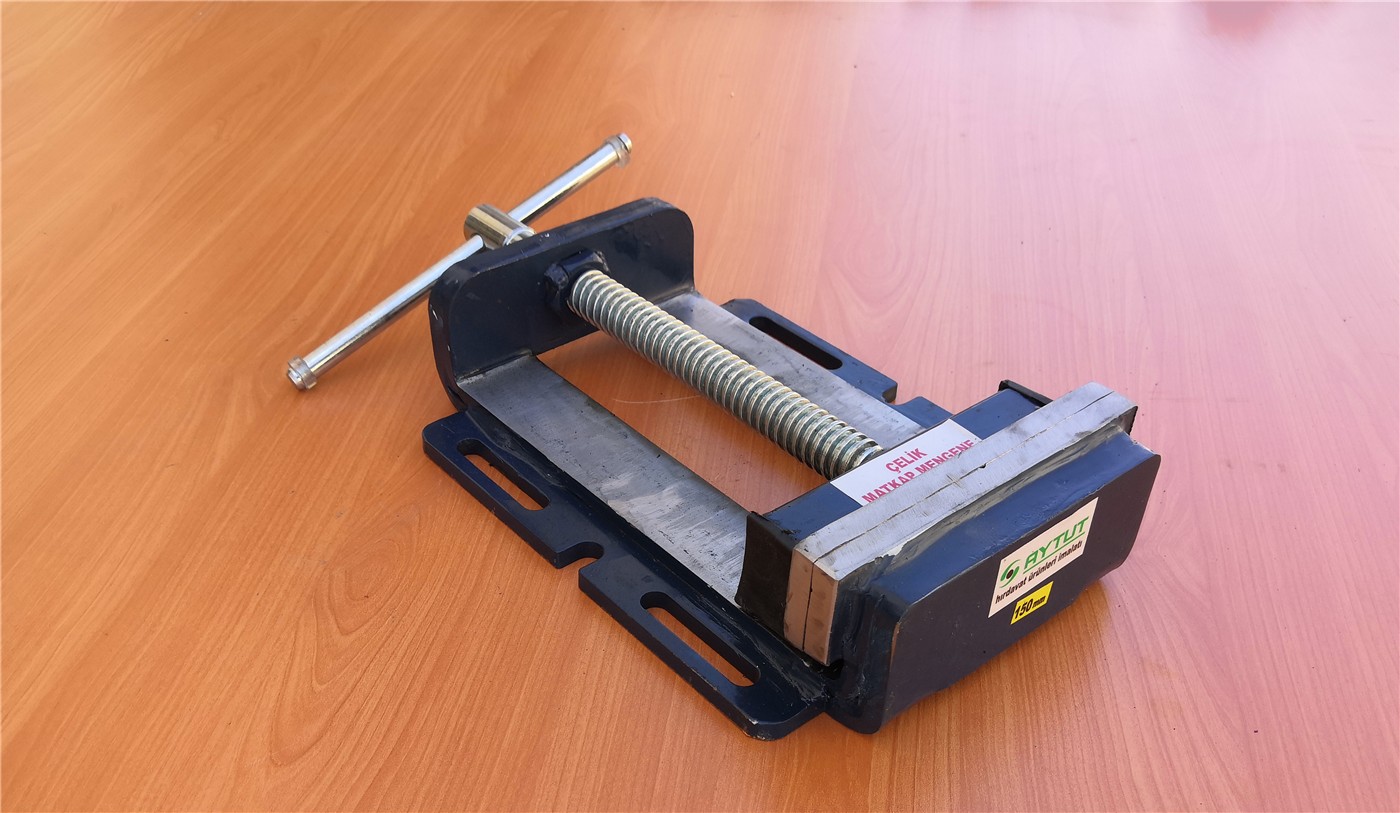

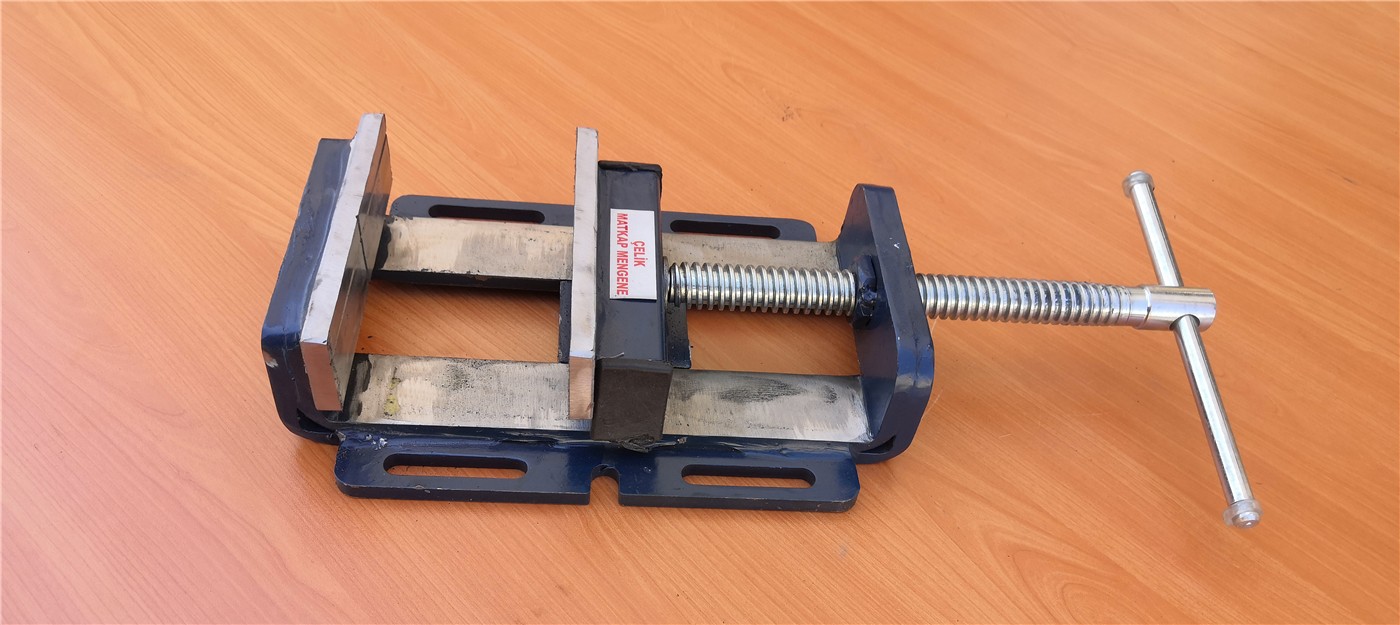

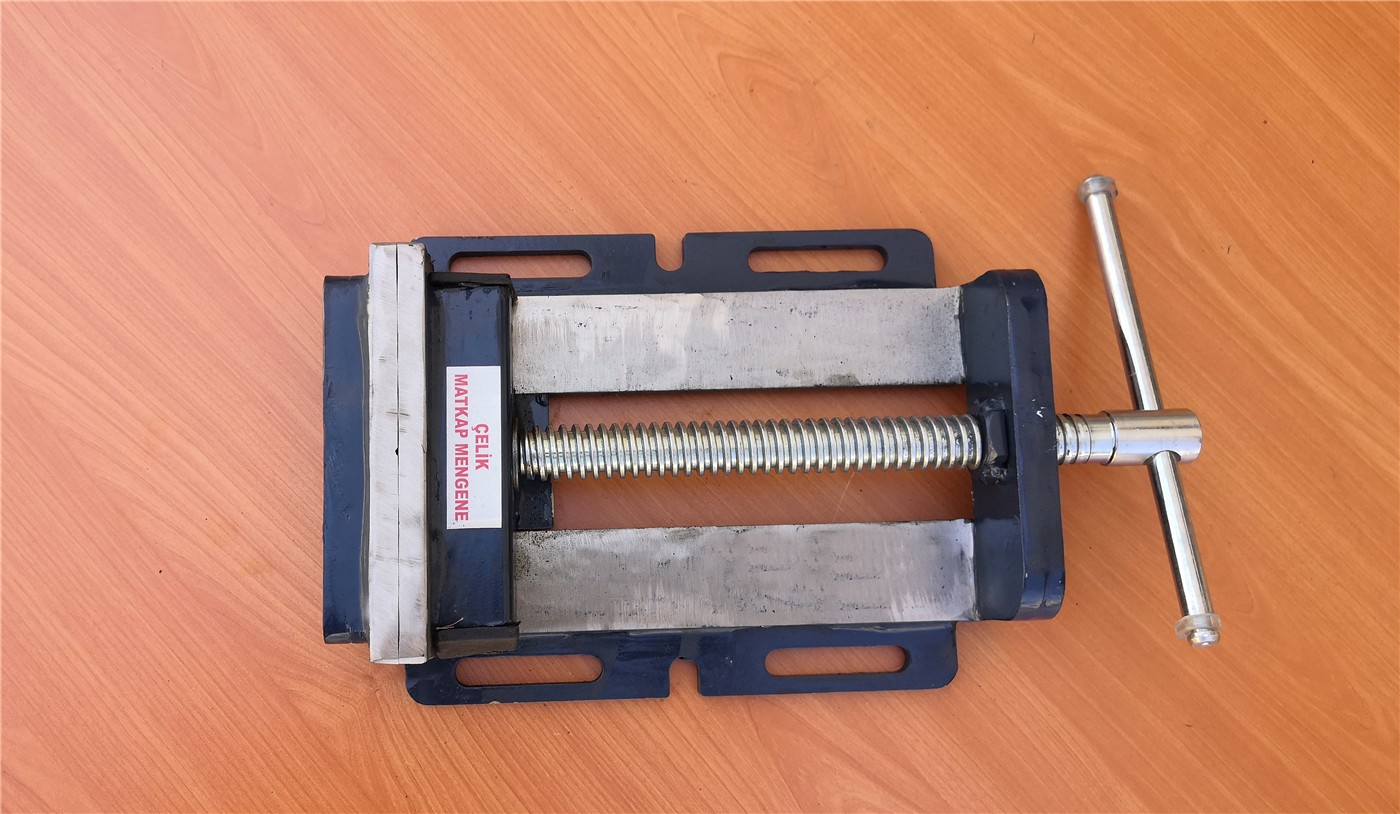

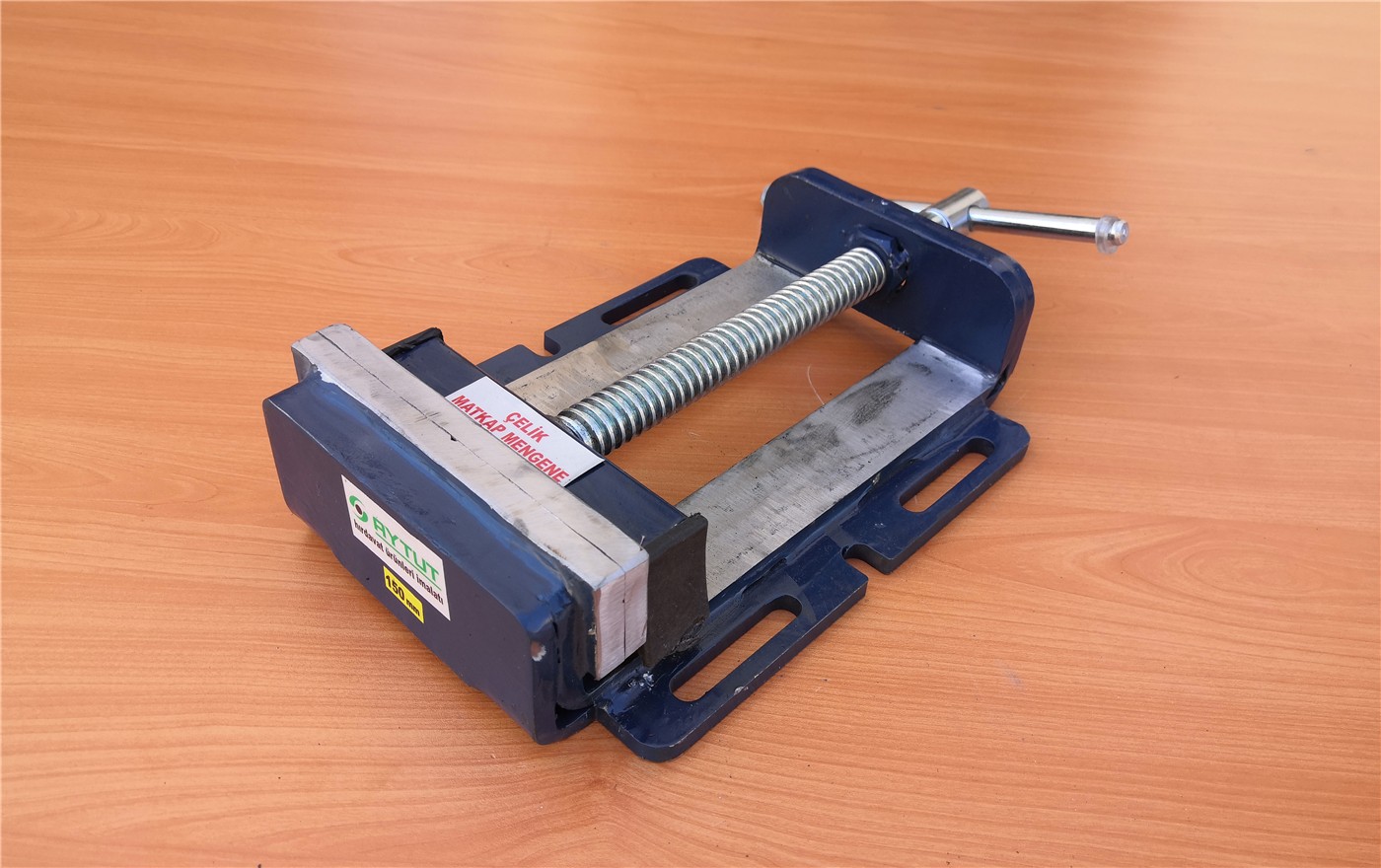

This gallery shows the 150 mm model from different angles. Body and mounting dimensions may vary between sizes; check the details of the model you intend to order.
What information will help me choose a vice?
Tell us about the operation, workpiece material and dimensions, bench or machine type, and mounting area. A photo or technical drawing of the part can also help us understand the application.
Where can I buy your products?
Explore the models using the product group's online shop link or visit our sales channels . For help choosing a product, contact us by phone or WhatsApp.
